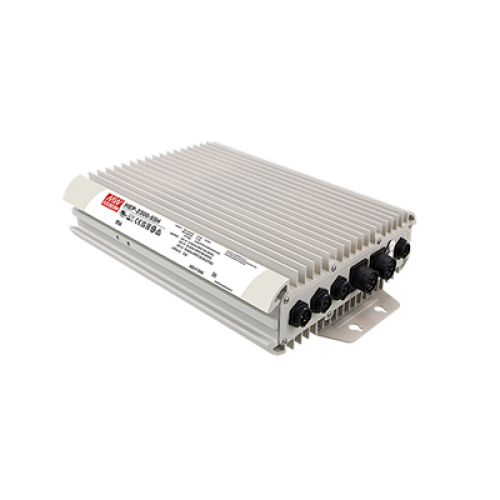

HEP-2300-380
2300W 380VDC 48A Harsh Environment Power Supply with Terminal Blocks and CANBus Protocol Please ring us to discuss a great price for this product.Product Features
- Fanless design, cooling by free air convection
- High voltage output
- Wide operating temperature range -40ºC ~ +70℃
- 6 years warranty
- Aluminum case and filling with heat-conducted glue
- High efficiency up to 95.5% and active PFC function
- Withstand 10G vibration test
- Wiring type with IP67 rating
Description
HEP-2300-HV is a 2300W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environments. The entire series is housed in an aluminium case and fully potted with heat-conducting glue. Adopting the full range 90~305VAC input, the entire series provides output voltage lines of 115V, 230V and 380V. In addition to the high efficiency up to 95.5%, the whole series operates from -40℃ to 70℃ under free air convection without a fan. HEP-2300-HV has complete protection functions and 10G anti-vibration capability. It complies with the international safety regulations such as TUV EN62368-1, UL62368-1, and the design refers to EN61558-1 and EN60335-1. HEP-2300-HV series serves as a high-performance power supply solution for various industrial applications.
Style
- Terminal
