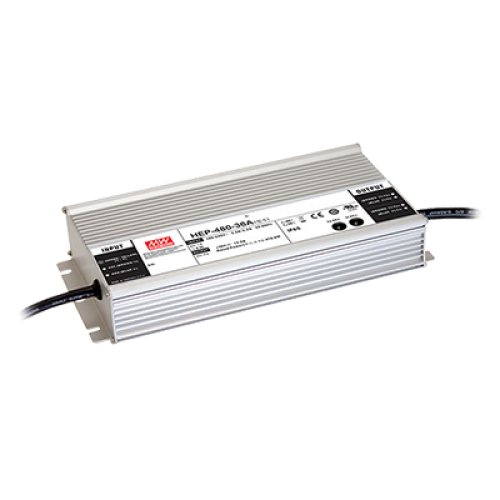

HEP-480-48
480W 48VDC 10A Harsh Environment Power Supply with Fixed Output Levels Please ring us to discuss a great price for this product.Product Features
- 55℃ ~ +65℃ wide operating range
- Meet 6KV surge immunity level
- 6 years warranty
- Withstand 10G vibration test
- Aluminum case and filling with heat-conducted silicone
- L262 x W125 x H43.8mm
- IP65 design, optional IP68 rated model available
- Operating altitude up to 5000 meters
- Universal AC input / Full range
Description
HEP-480-48 is a 480W 48V 10A AC/DC single output switching power supply capable of operating under humid, dusty, oily, and high-vibration conditions at high altitude and in poorly ventilated environments. HEP-480-48 is housed within an aluminium case and is fully potted with heat-conducted silicone. Thanks to state-of-the-art design and working efficiency up to 95%, HEP-480-48 can operate between -55~+65°C under free air convection. HEP-480-48 is equipped with an IP65 protection level against the ingress of dust and water and has a 10G anti-vibration capability meeting a 6KV surge immunity level. HEP-480-48 is suitable for harsh environment applications all over the world, such as outdoor telecommunication equipment, outdoor electronic signage/billboards, and petroleum plants or mineshaft facilities.
