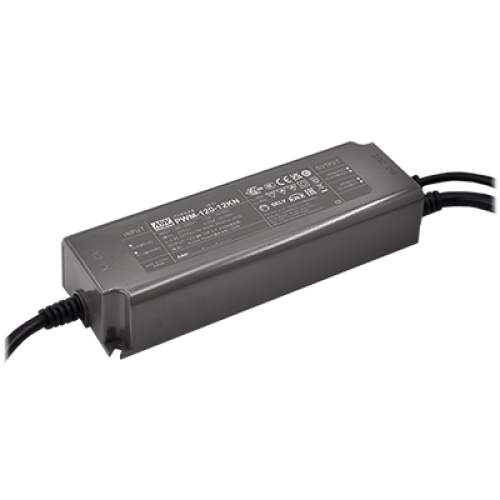

PWM-120-12KN
120W 12VDC 10A PWM Output KNX LED Driver Please ring us to discuss a great price for this product.Product Features
- Typical lifetime >50,000 hours
- Constant Voltage PWM style output with user changeable frequency up to 4KHz
- Integrated KNX control protocol
- Plastic housing with class II design
- Minimum dimming level 0.01%
- No need for KNX-DALI gateway
- Standby power consumption <0.5W
- 5 years warranty
Description
PWM KN series is a 120W AC/DC LED driver featuring constant voltage mode with PWM style output. It’s designed to maintain colour temperature and brightness uniformity when powering LED strips and constant voltage LED bulbs. It integrates a KNX control interface, eliminating the need for a separate KNX-DALI gateway.The series operates from 90 to 305VAC and is available in models with 12V or 24V output. With efficiency up to 90% and a fanless design, it supports case temperatures from -40°C to +90°C under free air convection.It enables ultra-low dimming down to 0.01%, making it suitable for low light level environments such as cinemas. The PWM output frequency can be adjusted up to 4KHz to meet IEEE1789-2015 and EU Ecodesign SVM requirements, reducing light flicker and supporting visual comfort.
