PWM-200-36KN

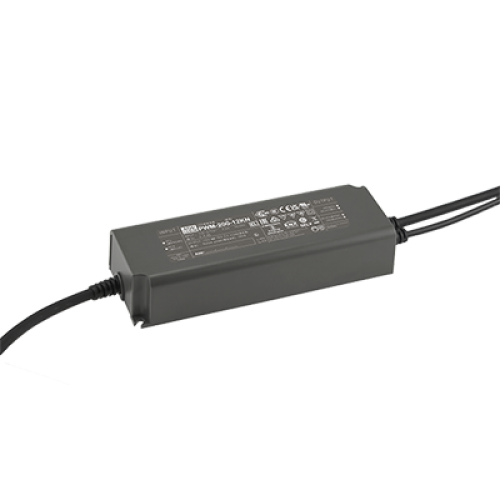

199.8W 36VDC 5.55A PWM Output KNX LED Driver Please ring us to discuss a great price for this product.Product Features
- 5 years warranty
- Minimum dimming level 0.01%
- Support KNX Data Secure
- Plastic housing with class II design
- No need for KNX-DALI gateway
- Standby power consumption <0.5W
- Typical lifetime >50,000 hours
- Constant Voltage PWM style output with user changeable frequency up to 4KHz
Description
PWM-200KN series is a 200W AC/DC LED driver featuring constant voltage mode with PWM-style output, designed to maintain consistent colour temperature and brightness across LED strips and constant voltage LED bulbs. The integrated KNX interface removes the need for a KNX-DALI gateway and is equipped with KNX Data Secure for enhanced safety and protection against manipulation in building automation.This series supports ETS project configuration and operates from 100 to 305VAC with output voltages ranging from 12V to 48V. With high efficiency up to 94% and fanless cooling, it operates within a wide -40°C to +85°C case temperature range.Its ultra-low dimming level of 0.01% is ideal for low light environments like cinemas, and the PWM output frequency is adjustable up to 4KHz to meet IEEE1789-2015 and EU Ecodesign SVM requirements, helping reduce light flicker and improve visual comfort.
