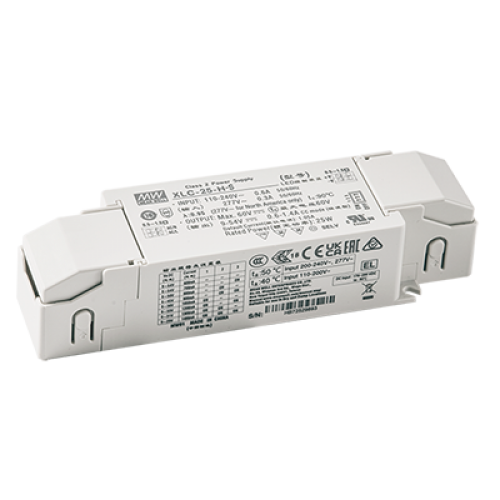

XLC-25-H-KNS
25W Constant Power KNX LED Driver with Strain Relief Please ring us to discuss a great price for this product.Product Features
- KNX/EIB protocol, supports KNX data secure
- Standby power consumption <0.5W
- Flicker free, complying with CE ErP directive
- Minimum dimming level 0.5%
- Constant power mode output with multiple stage selectable by ETS database
- Meet emergency lighting (EL) application
- Plastic housing with class II and PFC design
- 5 years warranty
Description
XLC-25-KN Series is a 25W constant power output LED driver. It operates from 100~305VAC and supports an output current range from 300mA to 1050mA, selectable via the ETS database. The integrated KNX interface removes the need for a separate KNX-DALI gateway, simplifying smart lighting control.With an efficiency rating of up to 88%, this driver supports a wide case temperature range of -25°C to +85°C under free air convection. Designed according to modern safety regulations, the XLC-25-KN Series offers flexible functionality tailored for energy-efficient and intelligent LED lighting environments.
Style
- Strain Relief
