XLC-40-H-KNS

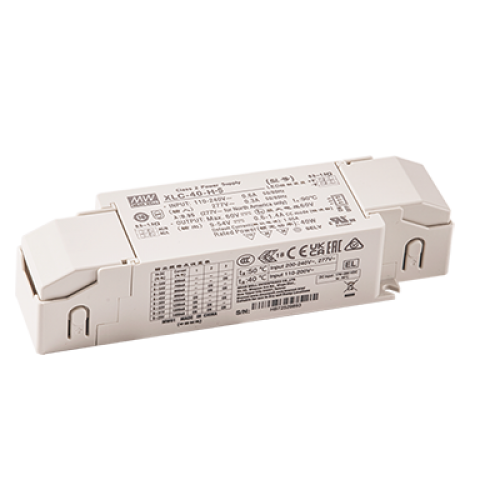

40W Constant Power KNX LED Driver with Strain Relief Please ring us to discuss a great price for this product.Product Features
- Constant power mode output with multiple stage selectable by ETS database
- Flicker free, complying with CE ErP directive
- Standby power consumption <0.5W
- Minimum dimming level 0.5%
- KNX/EIB protocol, supports KNX data secure
- Meet emergency lighting (EL) function application
- Plastic housing with class II and PFC design
- 5 years warranty
Description
The XLC-40-KN Series is a 40W constant power output LED driver designed for intelligent lighting integration. It accepts 100–305VAC input and delivers output currents from 600mA to 1400mA, configurable via ETS database. By using a native KNX interface, it eliminates the need for a KNX-DALI gateway, streamlining the installation process.With a high efficiency of up to 88% and a case temperature operating range of -25°C to +90°C under free air convection, it suits demanding environments. Compliant with the latest safety and energy regulations, the XLC-40-KN Series is ideal for modern LED lighting applications requiring flexible, secure, and smart control.
Style
- Strain Relief
