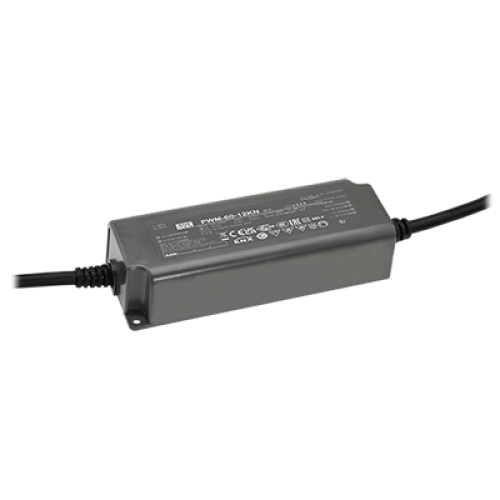

PWM-60-12KN
60W 12VDC 5A PWM Output KNX LED Driver Please ring us to discuss a great price for this product.Product Features
- Constant Voltage PWM style output with user changeable frequency up to 4KHz
- No need for KNX-DALI gateway
- Typical lifetime >50,000 hours
- Integrated KNX control protocol
- Plastic housing with class II design
- 5 years warranty
- Minimum dimming level 0.01%
- Standby power consumption <0.5W
Description
PWM KN series is a 60W AC/DC LED driver featuring constant voltage mode with PWM style output. It ensures consistent colour temperature and brightness when powering LED strips and constant voltage LED bulbs. The built-in KNX interface eliminates the need for an additional KNX-DALI gateway.Operating from 90 to 305VAC, the series supports output voltages of 12V and 24V. With efficiency levels up to 89% and a fanless design, PWM KN drivers can function in environments with case temperatures ranging from -35°C to +90°C under free air convection.Ideal for ultra-low light applications such as cinemas, it supports dimming down to 0.01%. The output frequency is adjustable up to 4KHz to meet IEEE1789-2015 and EU Ecodesign SVM requirements, making it a health-conscious option for flicker-sensitive lighting.
