XLC-60-H-KN

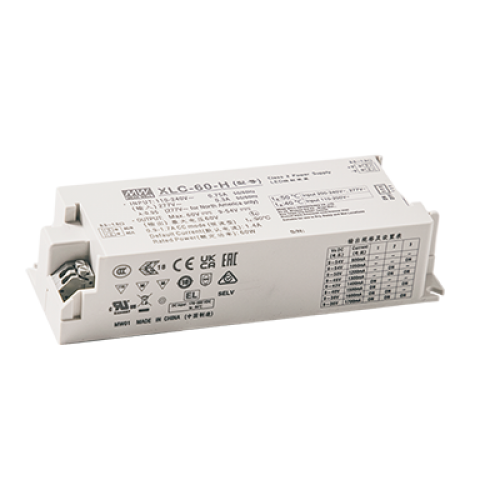

60W Constant Power KNX LED Driver with Terminal Blocks Please ring us to discuss a great price for this product.Product Features
- KNX/EIB protocol, supports KNX data secure
- Meet emergency lighting (EL) application
- Plastic housing with Class II and PFC design
- Flicker free, complying with CE ErP directive
- Minimum dimming level 0.5%
- Constant power mode output with multiple stage selectable by ETS database
- Functions: operation hours, power consumption feedback, log/linear curve selection, etc.
- Standby power consumption <0.5W
- 5 years warranty
Description
The XLC-60-KN Series is a 60W constant power output LED driver designed for integration into smart lighting systems. It supports 100–305VAC input and offers selectable output currents from 900mA to 1700mA via ETS database configuration. By using a KNX interface directly, it eliminates the need for a separate KNX-DALI gateway, simplifying setup and reducing cost.This driver is built for efficiency (up to 90%) and operates reliably under case temperatures from -25°C to +90°C with free air convection. It also supports dimming down to 0.5%, and includes data-secure KNX/EIB protocol support for smart control, monitoring, and feedback. Its Class II plastic housing and compliance with CE ErP standards make it an ideal choice for commercial, architectural, and digital lighting applications with enhanced flexibility and control.
Style
- Terminal Blocks
