PLM-12-700

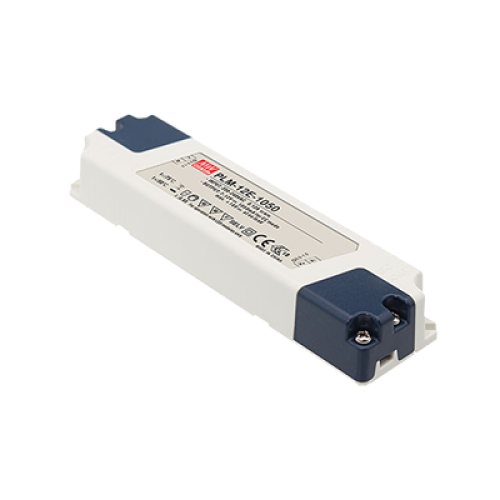

12.6W 110 ~ 295VAC Input 0.7A 22VDC Constant Current LED Power Supply Please ring us to discuss a great price for this product.Product Features
- 2 years warranty
- Protections: Short circuit
- Built-in active PFC function
- Constant current design
- High reliability, low cost
- 230VAC only or Full range (up to 295VAC) models available
- L145 x W38 x H22mm
- Cooling by free air convection
Description
PLM-12 is a 12W economical AC/DC LED power supply series. Incorporating a built-in active PFC design, PLM-12 provides a high Power Factor value greater than 0.9. In addition, with the low no-load power consumption below 0.5W and the setup time of less than 500ms, PLM-12 complies with the ErP regulation required by the European Union for lighting fixtures. PLM-12 is a class Ⅱ (without FG pin) power unit housed in a UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with a screw-less clamp-style terminal block that greatly simplifies the wiring installation. Two types of models with different input voltage ranges are offered: PLM-12 series, which operates from 110~295VAC, and PLM-12E series, which operates from 180~295VAC. These two series are both constant current output designs, supplying models with currents of 350mA, 500mA, 700mA and 1050mA, respectively.
