RPS-160-5
103W 5VDC 30A Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- Standby 5V@0.8A with fan
- "5 x "3 compact size
- Built-in remote sense function for 5 ~ 15V
- 3 years warranty
- Medical safety approved (2 x MOPP between primary to secondary )
- With power good and fail signal output
- Built-in active PFC function
- Free air convection for 110W and 160W with 20.5CFM forced air
- Suitable for BF application with appropriate system consideration
- Universal AC input / Full range
Description

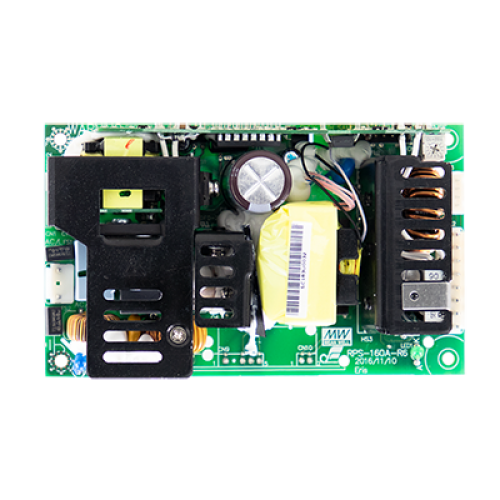

RPS-160 Series can fulfill the requirements of general medical or industrial applications while the green RPSG-160 with additional PS-ON control 5V/0.8A standby output and 0.75W of no-load-power-consumption can be implemented into all kinds of end systems. RPS-160 is a 160W highly reliable green PCB type medical power supply with a high power density on a 5” by 3” footprint. It accepts 90~264VAC input and offers various models with output voltages between 5V and 48V. The working efficiency is up to 88% and the extremely low no load power consumption is under 0.5W.RPS-160 is able to be used for Class I (with FG) system design. The extremely low leakage current is less than 160μA. In addition, it conforms to the international medical regulations (2 × MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.
