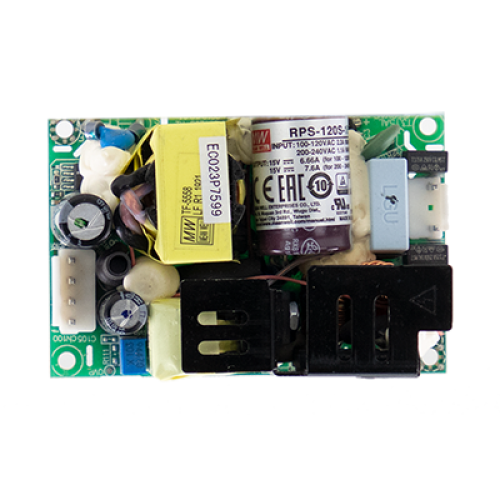

RPS-120S-12
114W 12VDC 9.5A Compact Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- Suitable for BF application with appropriate system consideration
- 3 years warranty
- 30~+85°C wide range operating temperature
- 3" × 2" compact size
- Operating altitude up to 4000 meters (Note 6)
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- EMI for both Class I & Class II configurations
- 120W convection, 150W peak (10 sec.)
- Extremely low leakage current
- No load power consumption < 0.3W
Description
RPS-120S is a 120W highly reliable green PCB type medical power supply with a high power density on a 3” by 2” footprint. It accepts 80~264VAC input and offers various models with output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no-load power consumption is below 0.3W.RPS-120S is able to be used for both Class I (with FG) & Class II (no FG) system design. The extremely low leakage current is less than 150μA. In addition, it conforms to the international medical regulations (2 × MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.
