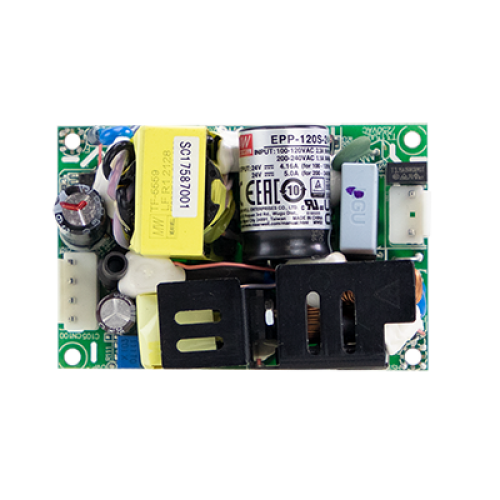

EPP-120S-15
114W 15VDC 7.6A Open Frame Power Supply with PFC Function Please ring us to discuss a great price for this product.Product Features
- Operating altitude up to 5000 meters
- No load power consumption <0.3W
- 3 years warranty
- 30 ~ +85℃ wide range operating temperature
- 3" × 2" compact size
- 120W convection, 150W peak (10 sec.)
- EMI for both Class I & Class II configurations
- High efficiency up to 94%
Description
EPP-120S is a 120W highly reliable green PCB type power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94%, and the extremely low no-load power consumption is below 0.3W. EPP-120S is able to be used for both Class I (with FG) and Class II (no FG) system designs. EPP-120S has complete protection functions; it complies with international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL62368-1 and IEC62368-1. EPP-120S series serves as a high price-to-performance power supply solution for various industrial applications.
