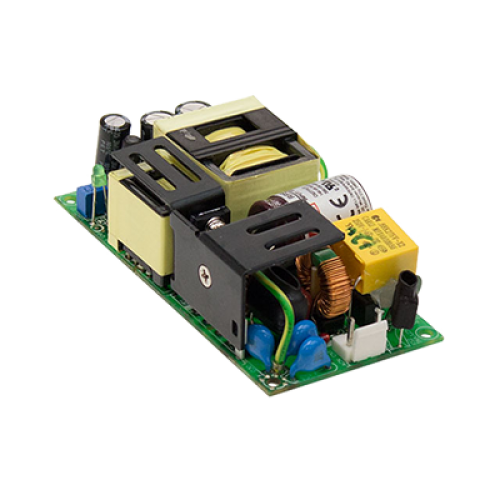

RPS-200-12
140.4W 12VDC 11.7A Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- Lifetime > 65,000 hours
- No load power consumption < 0.5W
- Suitable for BF application with appropriate system consideration
- "4 x "2 compact size
- 140W convection, 200W force air
- 3 years warranty
- Protections: Short circuit / Overload / Over voltage / Over temp
- 12V/0.5A fan supply
- EMI Class B for both Class I (with frame ground) and Class II (no frame ground) configurations
- Extremely low leakage current
- Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
Description
RPS-200 is a 200W highly reliable green PCB type medical power supply with a high power density (21.9W/in³) on the 4" by 2" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 95%, and the extremely low no-load power consumption is below 0.5W.RPS-200 is able to be used for both Class I (with FG) and Class II (no FG) system designs. The extremely low leakage current is less than 130μA. In addition, it conforms to the international medical regulations (2 × MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.
