EPP-200-48
144W 48VDC 4.2A Open Frame Power Supply with PFC Function Please ring us to discuss a great price for this product.Product Features
- Built-in 12V/0.5A FAN supply
- Cooling by free air convection for 140W and 200W with 10CFM forced air
- LED indicator for power on
- Operating altitude up to 5000 meters
- 4" x 2" miniature size
- Built-in active PFC function
- Universal AC input / Full range
- 3 years warranty
- EMI Conduction for Class B Radiation for Class B with FG (Class I) and Class A without FG (Class II)
- Protections: Short circuit / Overload / Over voltage / Over temperature
- High efficiency up to 94%
- No load power consumption <0.5W
Description

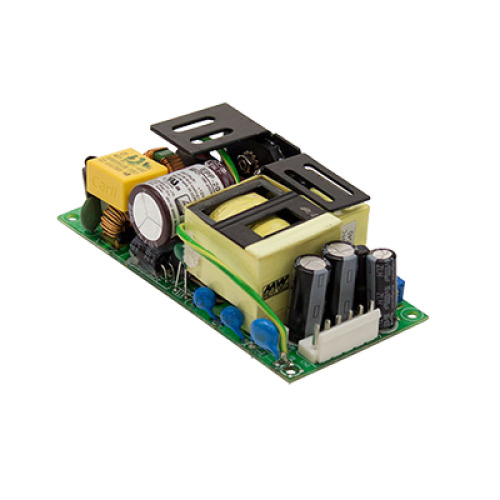

EPP-200-48 is a 144W 48V 3A miniature green mode industrial PCB type power supply with a high power density (21.9W/inch cubed) and a 4” by 2” footprint. It accepts 80~264VAC input and offers an output voltage of 48V. The working efficiency is up to 94% and the no load power consumption is below 0.5W. EPP-200-12 can be used for both Class I (with FG) and Class II (no FG) system designs. EPP-200-48 is equipped with complete protection functions and complies with the international safety regulations TUV EN60950-1 UL60950-1 and IEC60950-1. The EPP-200-48 series serves as a high price to performance power supply solution for various industrial applications.
