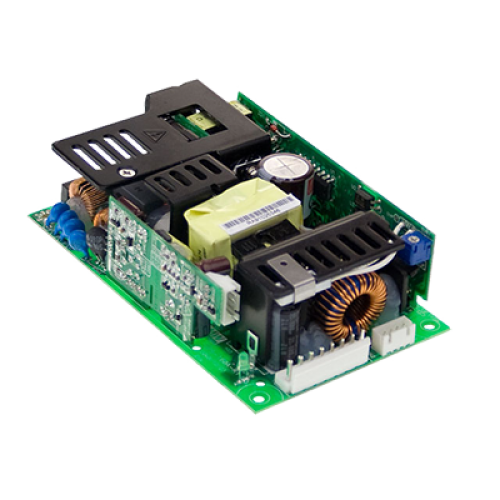

RPSG-160-48
161W 48V 3.25A & 5Vsb Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- Operating altitude up to 3000 meters
- 5Vdc standby output, Power Good, Power Fail
- EMI Class B for Class I configuration
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Remote sense for 5–15V
- Suitable for BF application with appropriate system consideration
- 110W convection, 160W force air
- 5" × 3" compact size
- No load power consumption under 0.5W by PS-ON control (G model)
Description
RPS-160 Series can fulfill the requirements of general medical or industrial applications while the green RPSG-160 with additional PS-ON control 5V/0.8A standby output and 0.75W of no-load-power-consumption can be implemented into all kinds of end systems. RPS-160 is a 160W highly reliable green PCB type medical power supply with a high power density on a 5” by 3” footprint. It accepts 90~264VAC input and offers various models with output voltages between 5V and 48V. The working efficiency is up to 88% and the extremely low no load power consumption is under 0.5W.RPS-160 is able to be used for Class I (with FG) system design. The extremely low leakage current is less than 160μA. In addition, it conforms to the international medical regulations (2 × MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.
