RPS-300-48

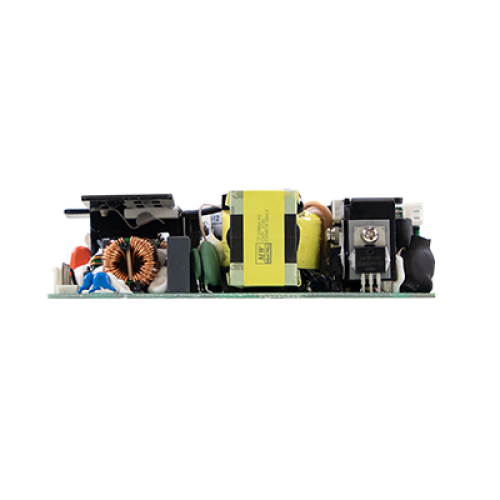

200.2W 48VDC 6.25A Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- Operating altitude up to 2000 metres
- Built-in active PFC function
- 5" x 3" miniature size• Universal AC input / Full range
- Suitable for BF application with appropriate system consideration
- Standby 5V/1A with fan, 0.6A without fan
- Built-in 12V/0.5A fan supply
- High Efficiency up to 93%
- 200W convection, 300W force air
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- No load power consumption <0.5W by PS-ON control
Description
RPS-300 is a 300W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint. It accepts 90~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 93% and the extremely low no-load power consumption is below 0.5W. The extremely low leakage current is less than 150μA.In addition, it conforms to international medical regulations (2 × MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment. RPS-300 series also offers the enclosed style model (RPS-300-C).
