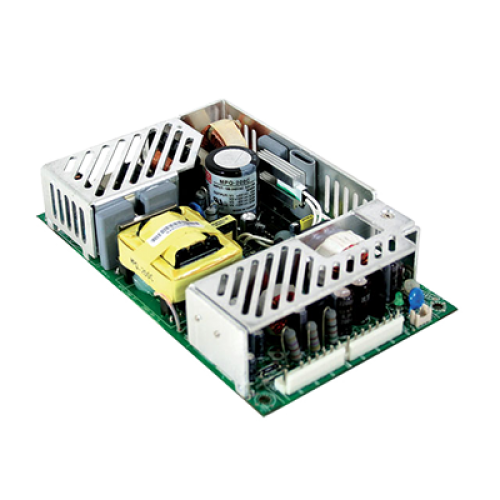

MPQ-200F
200W 5VDC 24VDC ±15VDC 15A 2.7A ±2A Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- Built-in remote ON-OFF control
- Built-in remote sensing function
- Universal AC input / Full range
- With power good and fail signal output
- ANSI/AAMI ES60601-1 medical safety approval
- Cooling by free air convection for 140W and forced air convection for 200W
- Fixed switching frequency at 100 KHz
- low leakage current < 180mA
- Protections: Short circuit / Overload / Over voltage / Over temp
Description
The MPQ-200 series is a high-performance, multi-output open frame power supply designed for medical applications, supporting up to four output channels. With universal AC input and medical-grade safety approvals (2 x MOPP), the MPQ-200 delivers up to 200W with forced air or 140W under convection cooling.Key integrated features include low leakage current below 0.5mA, onboard power good/fail signal outputs, 5V/0.5A standby output, and remote ON/OFF control. With short circuit, overload, over voltage, and over temperature protections, the MPQ-200 ensures both reliability and safety in demanding medical environments. Its high efficiency and compact 4x7 inch footprint make it ideal for installations where space and thermal management are critical.Perfect for patient-connected devices, diagnostic monitors, and other medical-grade systems requiring multiple regulated outputs with strict safety and EMC compliance.
