PID-250A
205W 12VDC 5VDC 15A 5A Isolated Outputs Open Frame Power Supply with PFC Function Please ring us to discuss a great price for this product.Product Features
- Isolated output & GND for CH1, CH2
- Universal AC input / Full range
- 3 years warranty
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Peak load 170% for CH1 within 10 seconds
- 100% full load burn-in test
- Built-in active PFC function, PF > 0.92
- Cooling by free air convection
- Remote control for CH1
Description

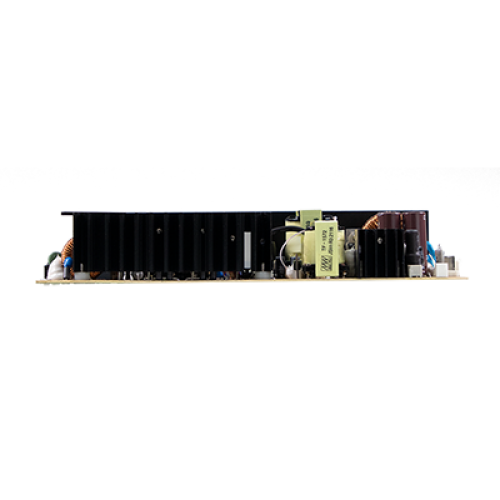

PID-250 is a 250W isolated dual output AC/DC power supply with built-in PFC function and universal AC input. Designed with isolated outputs and grounds for both channels, it offers robust protection features including short circuit, overload, over voltage, and over temperature. CH1 supports remote control and can handle 170% peak load for up to 10 seconds, ideal for demanding applications like motors or pulse-heavy loads. With convection cooling and a compact open-frame design, PID-250 is well-suited for industrial automation, LED lighting, and testing systems that require flexible, isolated output channels and reliable performance.
