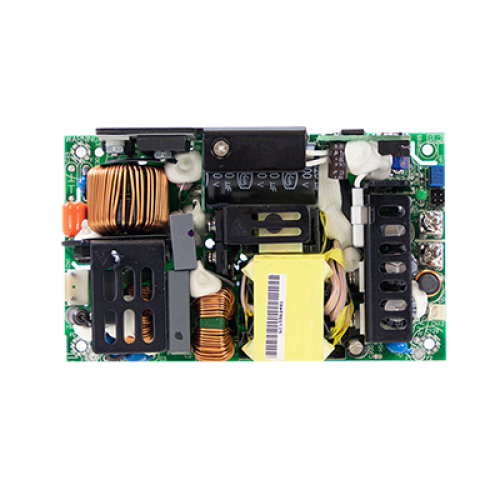

EPP-400-24
252W 24VDC 10.5A Open Frame Power Supply with PFC Function Please ring us to discuss a great price for this product.Product Features
- Cooling by free air convection for 250W and 400W with 25CFM forced air
- Output 18V available
- LED indicator for power on
- Standby 5V@1A with 1 fan, 0.6A without fan
- Universal AC input / Full range
- EMI Class B for Class I & Class A for Class II configuration
- Operating altitude up to 5000 meters
- 3 years warranty
- 5" × 3" miniature size
- Built-in remote sense function
- Built-in 12V/0.5A FAN supply
- Built-in active PFC function
- High efficiency up to 94%
- No load power consumption < 0.5W by PS_ON control
Description
EPP-400 is a 400W highly reliable green PCB type power supply with a high power density on the 5” by 3” footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W.EPP-400 is able to be used for both Class I (with FG) and Class II (no FG) system design. EPP-400 is equipped with complete protection functions; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, TUV BS EN/EN60335-1, UL62368-1 and IEC62368-1. EPP-400 series serves as a high price-to-performance power supply solution for various industrial applications.
