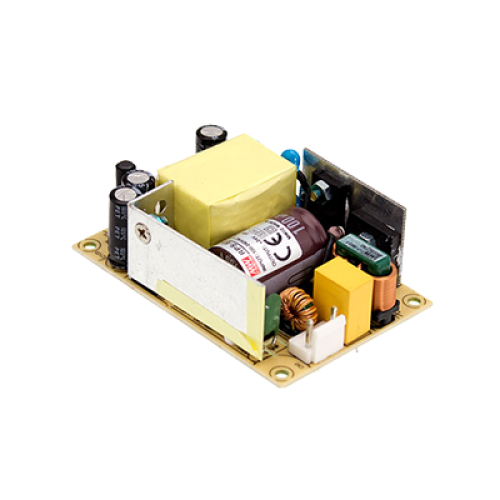

RPS-45-3.3
26.4W 3.3VDC 8A Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- Cooling by free air convection
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Suitable for BF application with appropriate system consideration
- 3" x 2" compact size
- No load power consumption < 0.1W
- 3 years warranty
- EMI Class B for Class II configuration
Description
The RPS-45-3.3 is a 3.3V 45W medical grade, reliable PCB medical power supply with a high power density. With an 80~264VAC input, the RPS-45 series is available with various output Voltages between 3.3V and 48V. A working efficiency of up to 91% and an extremely low no-load power consumption of below 0.1W. The RPS-45 series is able to be used for a Class II (no FG) system design. The extremely low leakage current is less than 100µA. This power supply also conforms to international medical regulations (2 x MOPP between primary to secondary).
