EPP-500-27

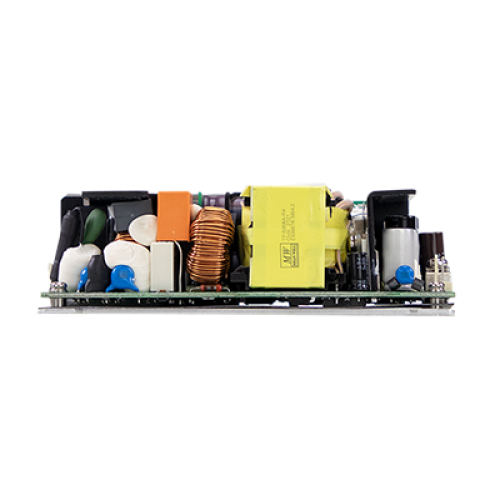

321.3W 27VDC 11.9A Open Frame Power Supply with PFC Function Please ring us to discuss a great price for this product.Product Features
- No Load power consumption
- 320W convection, 500W forced air
- Built-in active PFC function
- Universal AC input
- Power on LED indicator
- High efficiency
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
EPP-500-27 is a 500W highly reliable green PCB type power supply with a high power density on the 5" by 3" footprint.It accepts 80~264VAC input and offers an output voltage of 27V.The working efficiency is up to 93.5% and the extremely low no load power consumption is down below 0.5W.EPP-500-27 is able to be used for both Class I (with FG) and Class II (no FG) system design. EPP-500-27 has complete protection functions; it is complied with the international safety regulations such as TUV EN62368-1 TUV EN60335-1 UL62368-1 and IEC62368-1.EPP-500-27 series serves as a high price to performance power supply solution for various industrial applications. For more information and to discuss your requirements please contact us.
