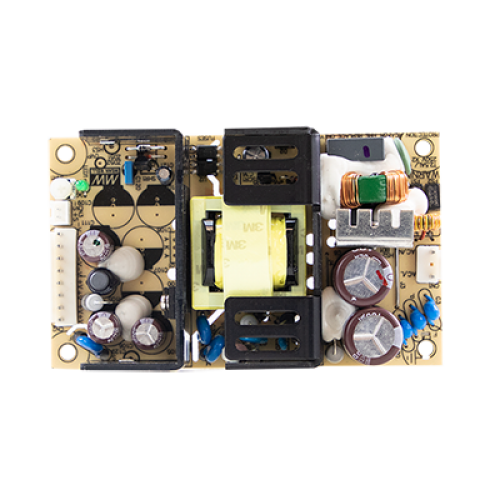

RPS-75-3.3
49.5W 3.3VDC 15A Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- No load power consumption < 0.75W
- 3 years warranty
- 75W convection, 100W force air
- 5" × 3" compact size
- Remote sense function
- EMI Class B for Class I configuration
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Suitable for BF application with appropriate system consideration
Description
RPS-75 is a 75W highly reliable green PCB type medical power supply with a high power density on the 5” by 3” footprint. It accepts 90~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 86%, and the extremely low no-load power consumption is below 0.75W. RPS-75 is able to be used for Class I (with FG) system design. The extremely low leakage current is less than 150μA. In addition, it conforms to international medical regulations (2 x MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.
