RPD-60A

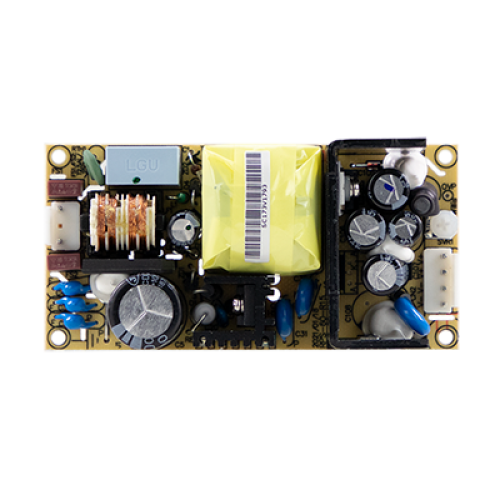

49W 5VDC 12VDC 5A 2A Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- EMI class B for Class I configuration
- Suitable for BF application with appropriate system consideration
- Extremely low leakage current
- 4" x 2" compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- 3 years warranty
- Cooling by free air convection
Description
*Check with your sales contact for approved modelsDeveloped for medical and IT applications with the requirement of reduced profiles and complying with both medical and industrial agency standards, these units can deliver their fully rated output of 50 to 60W with only free air convection and also have 10% more peak load capability than their larger rivals. Featuring only 200uA of leakage current at 264VAC, they can be installed into non-patient contact medical equipment and still comply with Class B EMI regulations. Standard functions include no load power consumption for single output models as low as 0.75W, which can be used in powering electronic equipment requiring the green mode facility. The reduced height of 29mm also makes the unit suitable for 1U applications or other height-constrained applications.
