PS-05-15

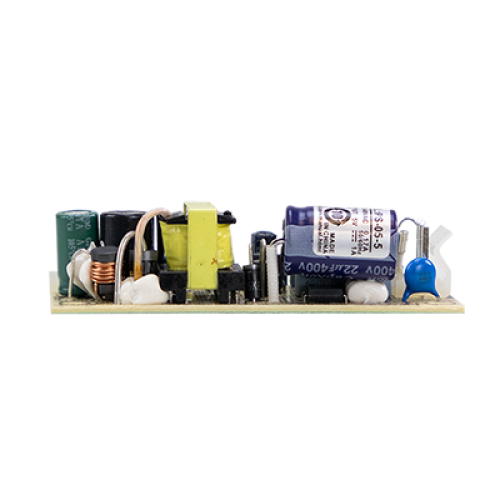

5.25W 15VDC 0.35A Industrial Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 100% full load burn-in test
- 2 years warranty
- Cooling by free air convection
- High reliability
- Universal AC input / Full range
- Fixed switching frequency at 67 KHz
- Low cost
- Low leakage current < 0.5mA
Description
The MEAN WELL PS-05-15 is a compact single-output switching power supply delivering 15VDC at 0.35A with 5.25W rated output. It operates from a universal 85–264VAC or 120–370VDC input and achieves 75% typical efficiency. Fanless free-air convection cooling supports quiet operation without an internal cooling fan. Low leakage current below 0.5mA is complemented by short-circuit, overload, over-voltage and over-temperature protection for dependable equipment integration. The unit operates across a -10°C to +60°C temperature range and measures just 75 × 40 × 20mm. A 100% full-load burn-in test supports the high-reliability positioning of the PS-05 range.
