PS-05-48
5.28W 48VDC 0.11A Industrial Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 100% full load burn-in test
- 2 years warranty
- Cooling by free air convection
- Fixed switching frequency at 67 KHz
- Universal AC input / Full range
- Low cost
- Low leakage current < 0.5mA
- High reliability
Description

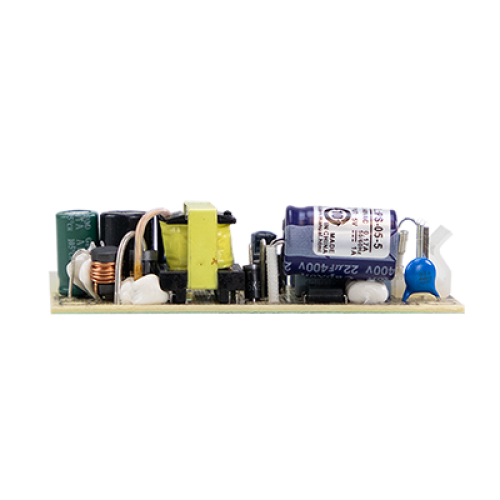

The MEAN WELL PS-05-48 is the highest-voltage model in the PS-05 range, providing 48VDC at 0.11A with 5.28W rated output. It accepts a universal 85–264VAC or 120–370VDC input and achieves 76% typical efficiency. Fanless free-air convection cooling provides quiet operation, while low leakage current below 0.5mA supports dependable integration into electronic equipment. Short-circuit, overload, over-voltage and over-temperature protection provide comprehensive electrical protection. The unit operates from -10°C to +60°C and measures only 75 × 40 × 20mm, providing a compact 48VDC power solution where PCB space is limited. Each unit undergoes a 100% full-load burn-in test.
