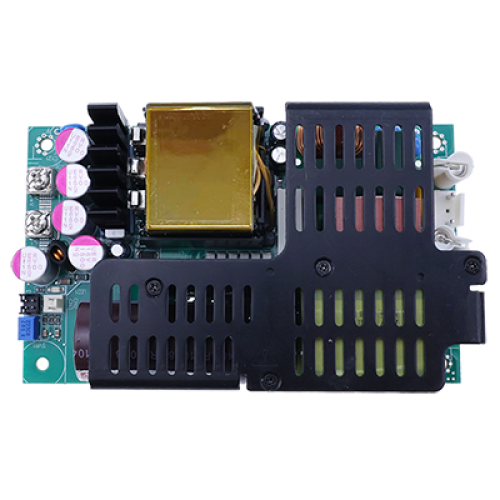

LOP-600-48
600W 80 ~ 264VAC 48VDC 12.5A 5""x3"" Low Profile Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- Compact size of 5"x3" with a low profile of 35.5mm
- High efficiency up to 95%
- Capable of operating at altitudes up to 5000 meters
- Universal input voltage range from 80-264VAC with PFC
- 3 year warranty
- 40°C to +80°C wide range operation temperature
Description
The MEAN WELL LOP-600-48 is a high-density 48VDC open-frame AC/DC power supply designed for industrial automation, communications, networking, medical equipment and other demanding electronic systems. With 23CFM forced-air cooling, it delivers 12.5A and 600W continuously, while natural convection provides 8.3A and 398.4W. For short-duration high-load demands, the unit can deliver up to 18.8A and 902.4W for three seconds. The power supply accepts 80–264VAC or 113–370VDC input with PFC and achieves 95% typical efficiency. Output voltage can be adjusted from 45.6V to 50.4V. Built-in Remote Sense compensates for voltage drop in load wiring, while the dedicated 12V fan supply supports external cooling. The compact low-profile design measures 127 × 76.2 × 33.5mm.
