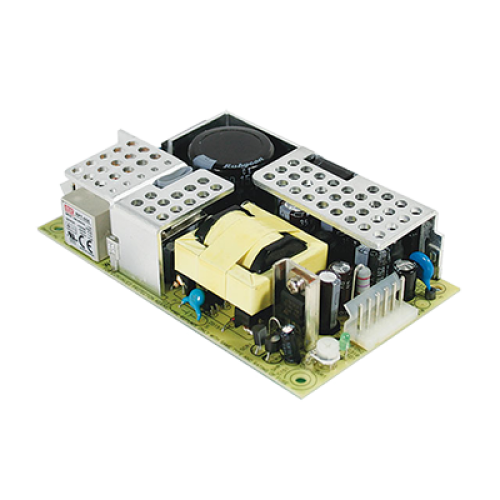

RPT-65G
66W 12VDC 24VDC 5VDC Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- Low leakage current <1mA
- 12V or 24V high peak output current capability
- 2 years warranty
- 65W free air convection, 80W with 18CFM forced air
- Optional L-Bracket and cover (RPT-65x-C, x = E, F, G)
- Protections: Short circuit / Overload / Over voltage
- Universal AC input / Full range
- 100% full load burn-in test
- Fixed switching frequency at 65KHz
Description
RPT-65 series are triple output switching power supplies that can provide 60-66W of convection cooled power. With 5" x 3" x 1.15" small footprint these compact switchers are ideal for 1U installations or other space constrained applications. Possessing a 12V or 24V main output channel with high peak load capability and 5V channel for logic control usage. Accompanied by the optional L-bracket and cover to provide more alternatives for system configuration if the external protective coverage is needed or the mounting space has constraints.
Style
- PCB
