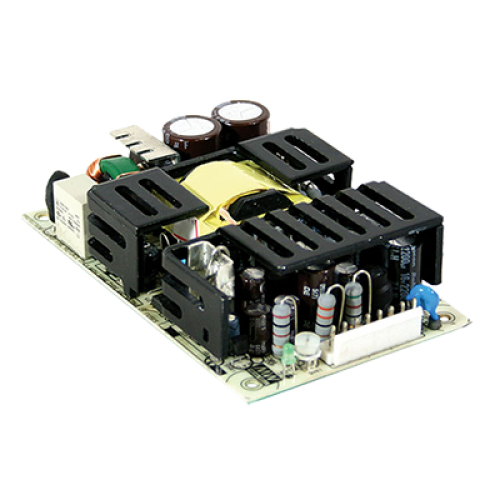

RPT-75A
68.5W 5VDC 12VDC -5VDC Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 72W convection, 100W forced air
- Medical safety approved (2 x MOPP) according to ANSI / AAMI ES60601-1 and IEC / EN60601-1
- 5" x 3" compact size
- EMI class B for Class I configuration
- 3 years warranty
- Lifetime > 140K hours
- Extremely low leakage current
Description
Complying with both medical and industrial agency standards these units can deliver their full rated output of 75W with only free air convection and up to 100W by providing 23.5CFM forced air. Featuring only 200µA of leakage current at 264VAC they can be equipped into non-patient contact medical equipment and still comply with Class B EMI regulations. Standard functions include short circuit over load over voltage protections and the operating temperature can be as high as 70°C under forced air convection. For a greener world RPS/D/T-75 are all RoHS compliant and the no load power consumption for single output models is as low as 0.75W so that they can be used in powering electronic equipments requiring green mode.
