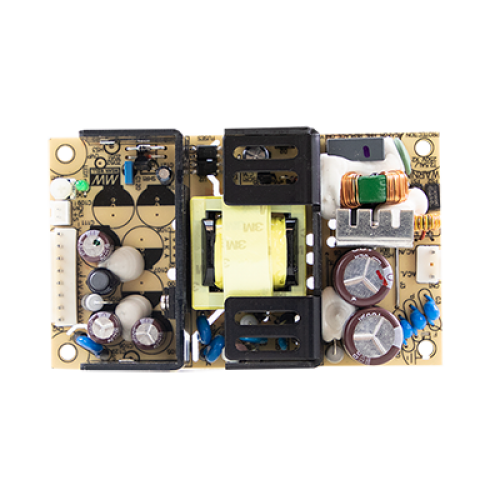

RPS-75-5
70W 5VDC 14A Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- EMI Class B for Class I configuration
- No load power consumption < 0.75W
- Suitable for BF application with appropriate system consideration
- 3 years warranty
- 75W convection, 100W force air
- 5" × 3" compact size
- Remote sense function
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Description
Complying with both medical and industrial agency standards, these units can deliver their full rated output of 75W with only free air convection and up to 100W by providing 23.5CFM forced air. Featuring only 200µA of leakage current at 264VAC, they can be equipped into non-patient contact medical equipment and still comply with Class B EMI regulations. Standard functions include short circuit overload over voltage protections, and the operating temperature can be as high as 70°C under forced air convection. For a greener world, RPS/D/T-75 are all RoHS compliant, and the no-load power consumption for single-output models is as low as 0.75W, so that they can be used in powering electronic equipment requiring green mode.
