SDU-100BQ1

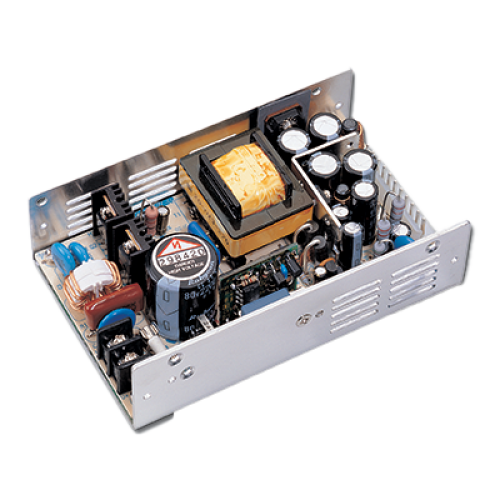

80W 24VDC Input 5VDC 12VDC -5VDC -12VDC Output U-Bracket Converter Please ring us to discuss a great price for this product.Product Features
- Low inrush current with soft start function
- Over voltage, over load, and short circuit protection
- 100% full load burn-in test
- 2-year warranty
- Input and output isolation
- Input polarity reverse protection
- Meets UL 60950-1 and LVD standards
Description
The SDU-100BQ1 is a compact, quad-output DC-DC converter delivering up to 100W of power from a wide 18–56VDC input range. Housed in a U-bracket format, it’s ideal for industrial and embedded applications that require multiple regulated voltages. The unit offers four isolated outputs: 5V, 12V, -5V, and -12V, supporting both legacy and modern subsystems. Built-in protections include overvoltage, overload, short circuit, and reverse polarity. The design complies with UL 60950-1 and LVD standards and is EMC Class B rated. Capable of 80W convection cooled or 100W with forced air, the SDU-100BQ1 ensures long-term reliability with a 270 K-hour MTBF and a 2-year warranty.
