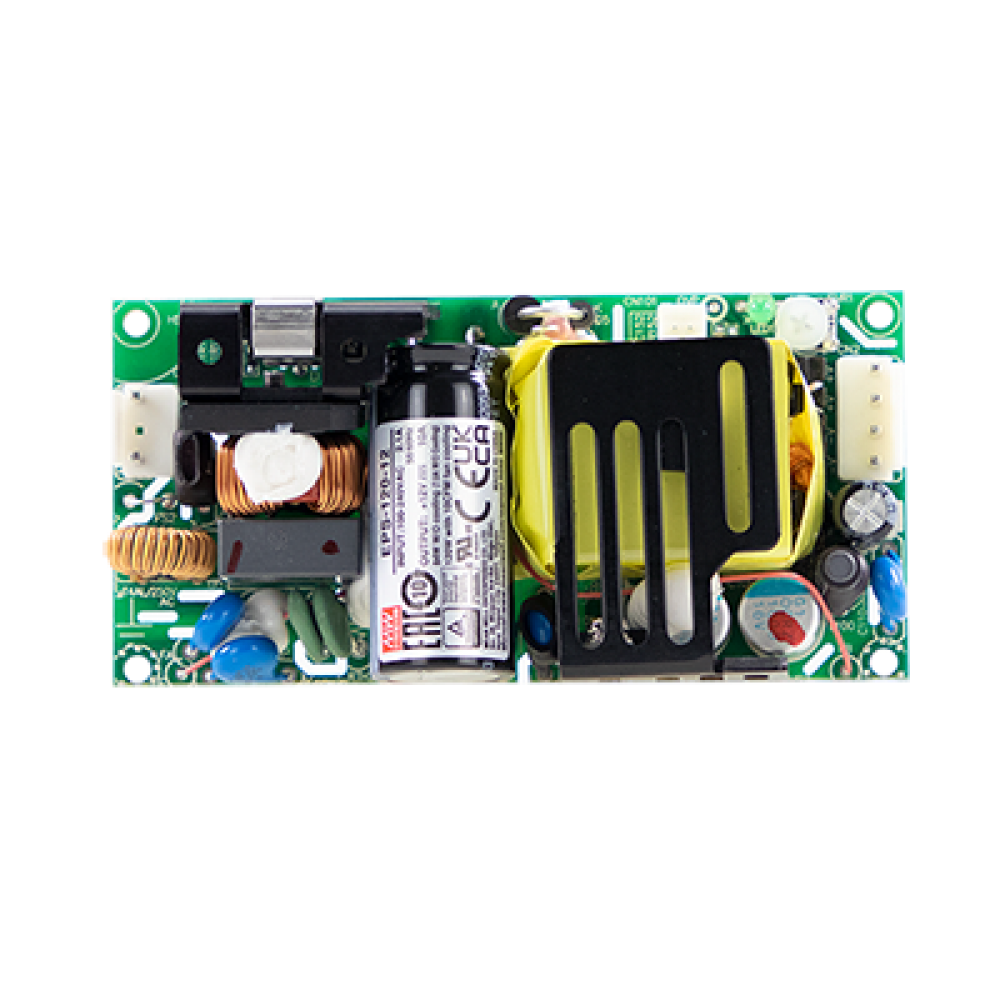

EPS-120-12
84W 12VDC 7.0A Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 4" x 2" miniature size
- Cooling by free air convection for 84W and 120W with 10CFM forced air
- 3 years warranty
- Built-in 12V / 0.5A fan supply
- EMI Class B for both Class I (with FG) and Class II (without FG) configuration
- Universal AC input / Full range
- High efficiency up to 91%
- No load power consumption < 0.3W
- LED indicator for power on
- Operating altitude up to 5000 metres
Description
The EPS-120-12 is a 120W 12V green PSC power supply with high reliance and high power density with Voltages ranging between 12V and 48V there is an input of 80 ~ 264 VAC The EPS-120 series includes a working efficiency of up to 91% and an extremely low no load power consumption of below 0.3W. Usable for both Class I (with FG) and Class II (no FG) system designs.
