RPS-120-48

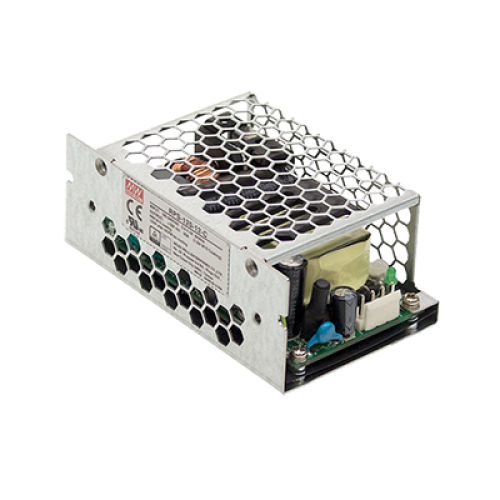

84W 48VDC 1.75A Medical Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 84W convection, 120W force air
- "4 x "2 compact size
- Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- No load power consumption < 0.3W
- Suitable for BF application with appropriate system consideration
- Extremely low leakage current
- 3 years warranty
- 12V/0.5A fan supply
- EMI Class B for both Class I (with frame ground) and Class II (no frame ground) configurations
Description
RPS-120 is a 120W highly reliable green PCB type medical power supply with a high power density on a 4” by 2” footprint. It accepts 80~264VAC input and offers various models with output voltages between 12V and 48V. The working efficiency is up to 91%, and the extremely low no-load power consumption is below 0.3W. RPS-120 can be used for both Class I (with FG) and Class II (no FG) system designs. The extremely low leakage current is less than 150μA. In addition, it conforms to the international medical regulations (2* MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.
Style
- PCB
