RPTG-160D
98.2W 5VDC 12VDC 24VDC Green Medical Open Frame Power Supply with 5Vsb Please ring us to discuss a great price for this product.Product Features
- EMI Class B for Class I configuration
- Lifetime > 85K hours
- Extremely low leakage current
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN 60601-1
- 100W convection, 145W force air
- 3 years warranty
- 5"×3" compact size
- Suitable for BF application with appropriate system consideration
- No load power consumption <0.75W by PS-ON control (G model)
Description

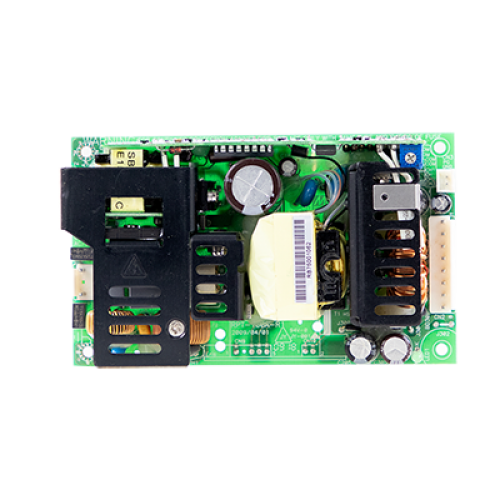

RPT(G)-160 is a 145W highly reliable PCB-type medical power supply with a high power density on the 5” by 3” footprint. It accepts 90~264VAC input and offers triple output voltages. The extremely low leakage current is less than 160 μA. In addition, it conforms to international medical regulations (2×MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment. RPTG-160 series also offers the enclosed style model RPTG-160-C.
Style
- PCB
