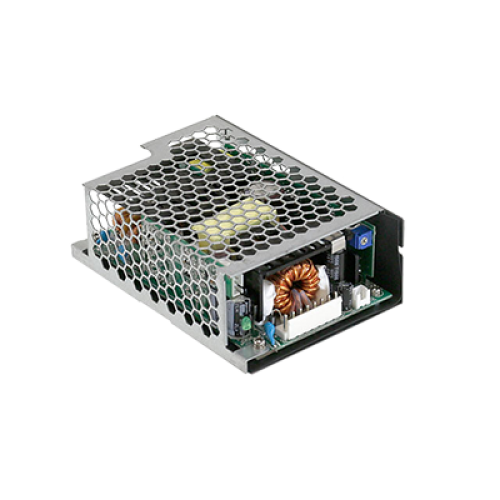

RPT-160B
98.4W 5VDC 12VDC -12VDC Medical Open Frame Power Supply with 5Vsb Please ring us to discuss a great price for this product.Product Features
- Lifetime > 85,000 hours
- Medical safety approved (2 x MOPP) according to ANSI / AAMI ES60601-1 and IEC / EN60601-1
- Extremely low leakage current
- No load power consumption under 0.75W by PS-ON control (G model)
- 100W convection, 145W force air
- 5" x 3" compact size
- 5Vdc standby output, Power Good, Power Fail
- EMI class B for Class I configuration
- Suitable for BF application with appropriate system consideration
Description
RPT-160 is a 145W PCB type medical power supply with a compact 5” by 3” footprint and high power density. It accepts 90~264VAC input and delivers triple output voltages, with extremely low leakage current under 160μA. Designed for BF-rated “patient contact” medical systems, it complies with 2×MOPP insulation and EMC standard EN55011, making it ideal for use in demanding medical applications. Unlike the RPT(G) version, this model does not include the PS-ON control feature. RPT-160 series also offers the enclosed style model [RPT-160-C].
Style
- PCB
