MFM-15-12

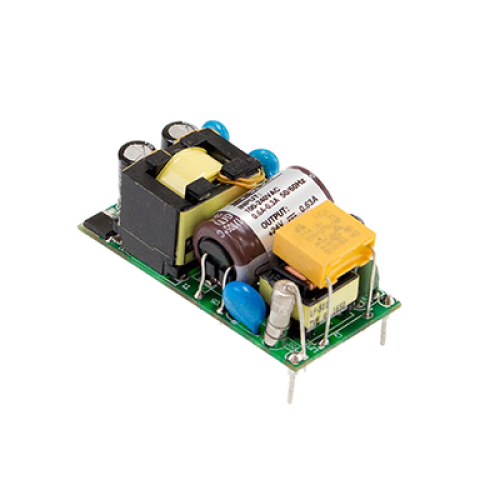

15W 12VDC 1.25A High Reliability Medical On Board Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- EMI class B for class II configuration
- 1.93" x 0.94" compact size
- Suitable for BF application with appropriate system consideration
- Extremely low leakage current
- 3 years warranty
- No load power consumption < 0.1W
- Wide operating temp. range -35°C ~ +85°C
- ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Medical safety approved (2 x MOPP) according to
- No minimum load required
Description
MFM-15 is a 15W high density and small size (49 x 23.8 x 23mm) AC/DC on board type medical power supply series. It operates from 80~264VAC and achieves low no load power consumption under 0.1W. With a high efficiency up to 87%, Class II (no FG) double insulation, strong thermal dissipation, 5G anti-vibration, high EMC performance, and 4KVAC isolation, it is well suited for compact, high-reliability designs.The MFM-15 complies with IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1 version three, meeting 2 x MOPP safety levels and maintaining ultra-low leakage current (
