MFM-30-15

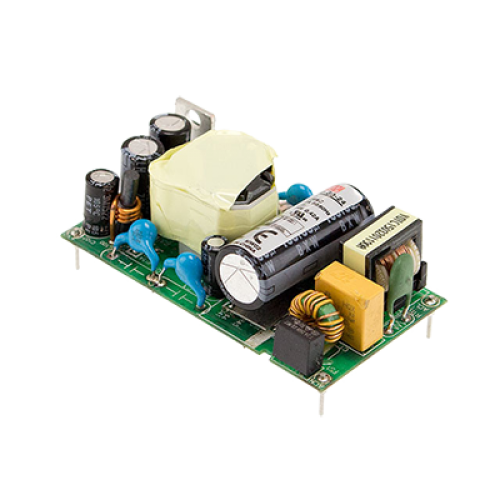

30W 15VDC 2A High Reliability Medical On Board Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 2.58"x1.38" compact size
- No load power consumption <0.075W
- 3 years warranty
- Extremely low leakage current
- No minimum load required
- Protections: Short circuit/ Overload/ Over voltage/ Over temperature
- Typical lifetime >52K hours
- EMI class B for Class II configuration
- Suitable for BF application with appropriate system consideration
- Wide operating temperature range -40~+85°C
- Medical safety approved (2XMOPP) according to ANSI/AAMI ES6060-1 and IEC/EN60601-1
Description
MFM-30-15 is a 30W 15V 2A high density and small sized AC/DC on board type medical power supply offered in pin type. It has a high efficiency and operates from 80~264VAC. It features a low no-load power consumption of less than 0.075W Class II (no FG) double insulation, outstanding dissipation, 5G anti-vibration, high EMC performance and 4KVAC isolation. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (
