MFM-05-15

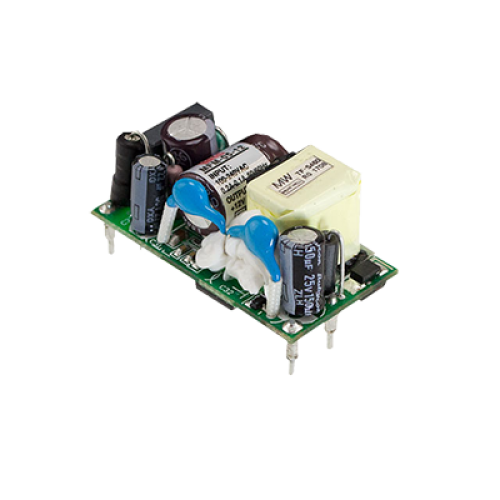

5W 15VDC 0.33A High Reliability Medical On Board Open Frame Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- No minimum load required
- Extremely low leakage current
- EMI Class B for Class Ⅱ configuration
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- L42 x W22.3 x H20.5mm compact size
- Suitable for BF application with appropriate system consideration
- Typical lifetime > 52K hours
Description
MFM-05 is a 5W high-density and small-size (L42 x W22.3 x H20.5mm) AC/DC on-board type medical grade power supply series. It features the operation for 80~264VAC, a low no-load power consumption of less than 0.075W, a high efficiency of up to 82%, Class II (no FG) double insulation, outstanding dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. The design observes IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (
