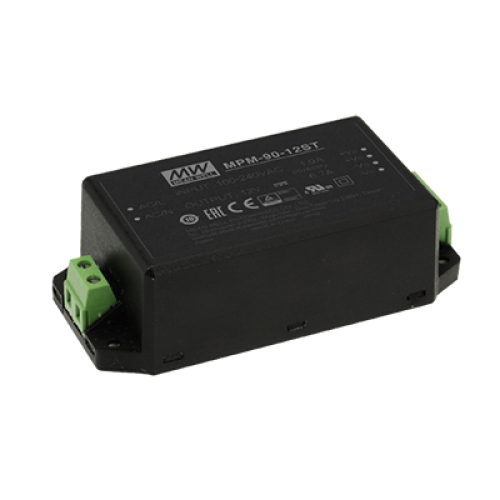

MPM-90-12ST
80.4W 6.7A 12VDC High Reliability Screw Terminal Medical Power Module Please ring us to discuss a great price for this product.Product Features
- Operating altitude up to 4000 meters
- Protections: Short circuit / Overload / Over voltage
- Suitable for BF application with appropriate system consideration
- No minimum load required
- 100W peak (10 sec.)
- Extremely low leakage current
- PCB, chassis or screw terminal mounting version
- Wide operating temperature range: -30 ~ +80°C
- 3 years warranty
- 3.43" x 2.05" compact size
- Isolation Class II
- EMI Class B without additional components
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- No load power consumption < 0.1W
Description
The MEAN WELL MPM-90-12ST combines medical-grade power performance with a practical screw-terminal mounting format. It delivers 12VDC at 6.7A with 80.4W continuous convection-cooled output and provides up to 7.37A and 88.4W peak output for 10 seconds. An 80–264VAC or 113–370VDC input supports broad mains compatibility, while typical efficiency reaches 92%. The design provides 2 x MOPP isolation and is suitable for BF applications with appropriate system consideration. Class II insulation, ultra-low touch current, EMI Class B performance and comprehensive protection support medical equipment integration. The screw-terminal chassis measures 109 × 52 × 33.5mm and withstands 5G vibration.
Style
- Screw Terminal
