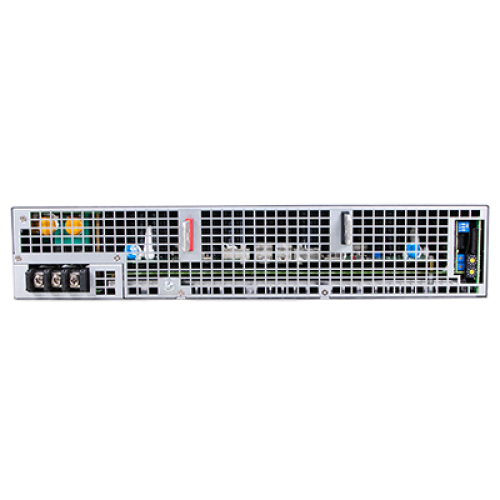

SHP-30K-055-PM
19000W 55VDC 346A Digital Power Supply With PMBus Protocol Please ring us to discuss a great price for this product.Product Features
- 3ϕ 3-wire / △ or Y 340~530VAC or 3ϕ 4-wire / Y 340~530VAC
- Output voltage and constant current level programmable
- High efficiency up to 97%
- 2U high 19"-inch rack with forced air cooling
- Built-in CANBus / Optional PMBus / MODBus-RTU / RS-485 protocol
- 5 years warranty
- Active current sharing up to 12 units (285KW) and more
- Up to 120% peak power capability
Description
The SHP-30K-HV series is a 30 high-efficiency AC/DC power supply. This series operates for a wide range three three-phase AC input, neutral is not needed, and offers models with DC outputs (55V/115V/230V/380V) that are mostly demanded by various industries. Can work at ambient temperature up to 70℃ with forced air cooling. Moreover, the SHP-30K-HV series provides vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote ON-OFF control, auxiliary power, and communication protocols, that will not only satisfy market demand, but also enhance automation purposes. SHP-30K-HV can provide 120% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
