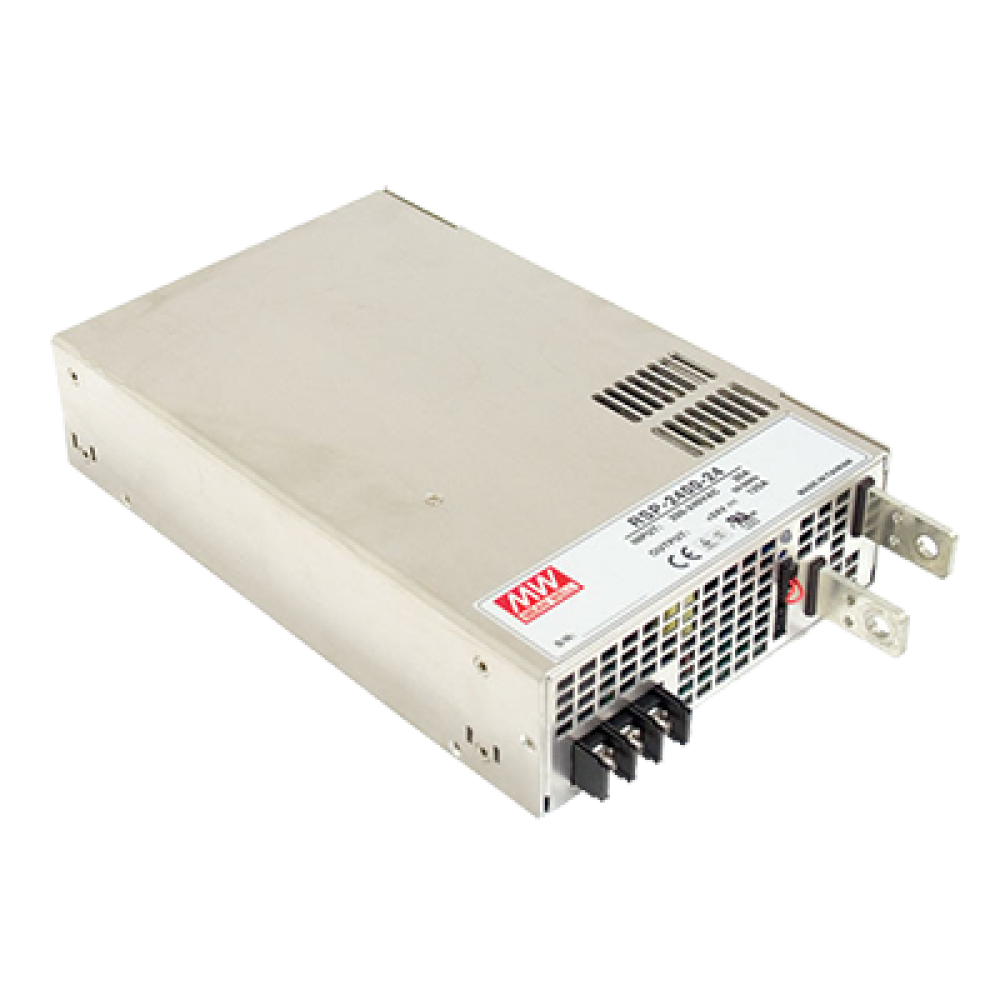

RSP-2400-24
2400W 24VDC 100A Programmable Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- Built-in remote ON-OFF control / remote sense / auxiliary power / power OK signal
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- High efficiency up to 91.5%
- Active current sharing up to 7200W (2+1)
- Built-in active PFC function
- Optional conformal coating
- 5 years warranty
- AC input 180~264VAC
- Output voltage programmable
Description
RSP-2400 is a 2400W enclosed switching power supply with power factor correction (PFC) function. Featuring 12.5W/ in3 of extreme high power density, full output power up to 50℃ and output voltages that can be adjusted from 20% to 110% rated voltage by adding 1~5.5V of external control voltage, which provides users great flexibility for their system design. Other standard features include remote sense, remote ON/OFF control, 12V/0.1A auxiliary output, and alarm signal output (both relay and TTL signal), RSP-2400 series use “constant current limiting plus delay shutdown” as the overload protection which enable the unit to power capacitive/inductive load and still provide full protection for customers’ system.
