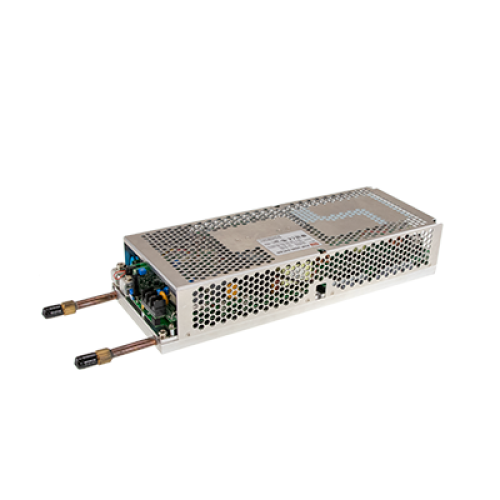

PHP-3500-24CAN
3480W 24VDC 145A Conduction Cooling Power Supply with CANBus Protocol Please ring us to discuss a great price for this product.Product Features
- 5 years warranty
- Built-in PMBus communication protocol (CANbus optional)
- Fanless design, cooling by water conduction
- High efficiency up to 96%
- Output voltage and constant current level programmable
- LED indicator for power on
- Active current sharing up to 14000W (3+1)
- Slim and Low profile (60mm)
- 30℃ ~ +70℃ working temperature
- OVC III – Operating altitude up to 3000m
- Built-in active PFC function
Description
The PHP-3500 series is a 3500W single-output AC/DC power supply with a 60mm low-profile design. It operates across a wide 90~264VAC input range and delivers either 24V or 48V DC output, making it versatile for various industrial systems.Designed for fanless, high-reliability operation, it uses water conduction for cooling and maintains full functionality between -30℃ and +70℃. The series offers high efficiency up to 96%, full protection features, and advanced digital control via PMBus or optional CANbus.Its slim construction and optional cold plate ensure easy mechanical integration. The unit also supports active current sharing up to 14kW in a (3+1) configuration, allowing for parallel operation. With international compliance certifications (EN61558-1, EN60335-1, EN62368-1, UL62368-1), the PHP-3500 is built for high-performance, high-demand environments.
