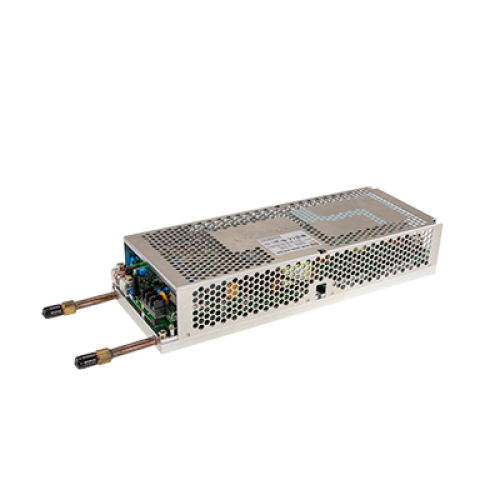

PHP-3500-24
3480W 24VDC 145A Conduction Cooling Power Supply with PMBus Protocol Please ring us to discuss a great price for this product.Product Features
- OVC III – Operating altitude up to 3000m
- Fanless design, cooling by water conduction
- High efficiency up to 96%
- Slim and Low profile (60mm)
- Active current sharing up to 14000W (3+1)
- LED indicator for power on
- Built-in active PFC function
- 5 years warranty
- Built-in PMBus communication protocol (CANbus optional)
- Output voltage and constant current level programmable
- 30℃ ~ +70℃ working temperature
Description
PHP-3500-24 Series is a 3500W single-output slim-type power supply with a 60mm low-profile design.Adopting the full range 90~264VAC input, the entire series provides an output voltage of 24V.In addition to the high efficiency up to 95%, the whole series operates from -30°C ~ +70°C under air convection without fan.PHP-3500-24 has the complete protection functions and 2G anti vibration capability; it complies with the international safety regulations such as TUV EN62368-1, UL62368-1, and design refers to EN61558-1 and EN60335-1.PHP-3500-24 series serves as a high performance power supply solution for various industrial applications. For more information and to discuss your requirements, please contact us.
