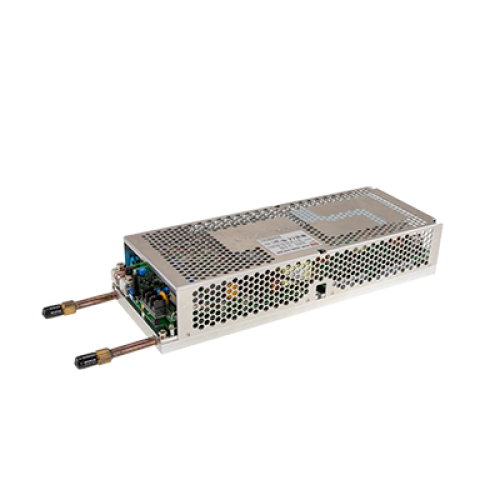

PHP-3500-48CAN
3504W 48VDC 73A Conduction Cooling Power Supply with CANBus Protocol Please ring us to discuss a great price for this product.Product Features
- 30℃ ~ +70℃ working temperature
- Fanless design, cooling by water conduction
- Built-in active PFC function
- Output voltage and constant current level programmable
- 5 years warranty
- Built-in PMBus communication protocol (CANbus optional)
- Active current sharing up to 14000W (3+1)
- OVC III – Operating altitude up to 3000m
- Slim and Low profile (60mm)
- LED indicator for power on
- High efficiency up to 96%
Description
The PHP-3500 series is a 3500W single-output AC/DC power supply with a 60mm low-profile design. It operates across a wide 90~264VAC input range and delivers either 24V or 48V DC output, making it versatile for various industrial systems.Designed for fanless, high-reliability operation, it uses water conduction for cooling and maintains full functionality between -30℃ and +70℃. The series offers high efficiency up to 96%, full protection features, and advanced digital control via PMBus or optional CANbus.Its slim construction and optional cold plate ensure easy mechanical integration. The unit also supports active current sharing up to 14kW in a (3+1) configuration, allowing for parallel operation. With international compliance certifications (EN61558-1, EN60335-1, EN62368-1, UL62368-1), the PHP-3500 is built for high-performance, high-demand environments.
