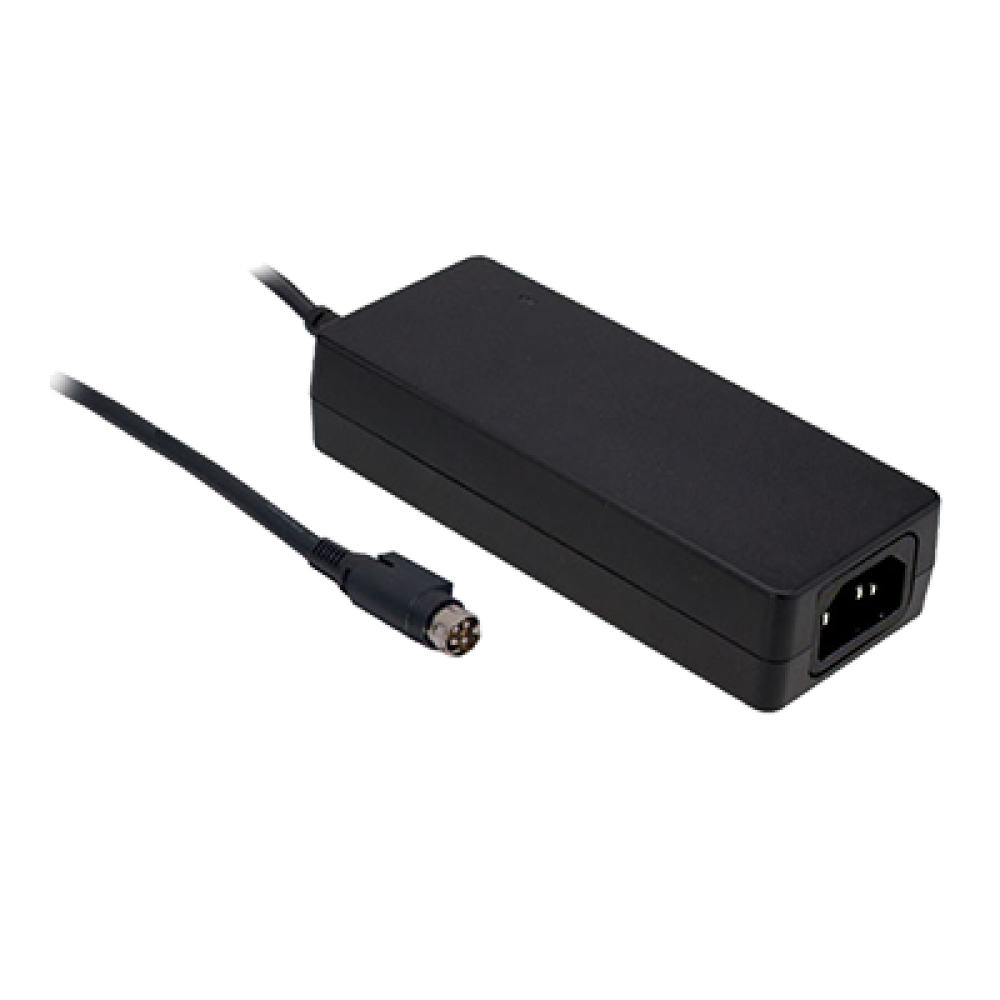

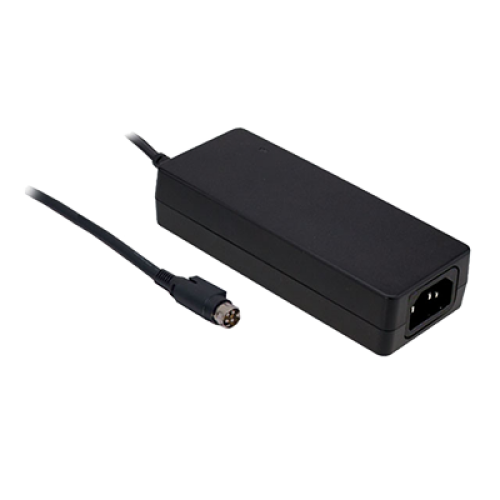

GSM120A20-R7B
120W 20VDC Output Industrial C14 Desktop Adapter Please ring us to discuss a great price for this product.Product Features
- LED indicator for power on
- 3 pole AC inlet IEC320-C14, Class I power unit
- 30°C ~ +70°C wide range working temperature
- Extremely low leakage current
- 3 years warranty
- Energy efficiency level VI and meets CoC Version 5
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- No load power consumption < 0.15W
- Lifetime > 95K hours
Description
GSM120A is a highly reliable, 120W desktop style single-output green medical adaptor series. This product is equipped with a 3-pin (with FG) standard IEC320-C14 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy the demands for various kinds of medical electrical devices.The circuitry design meets the international medical standards (2×MOPP), having an ultra low leakage current (
