GSM120A24-R7B

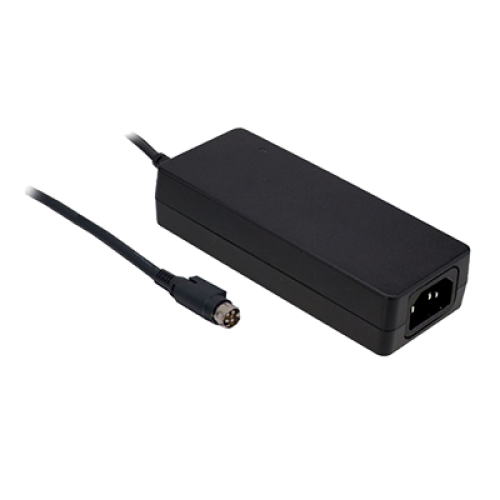

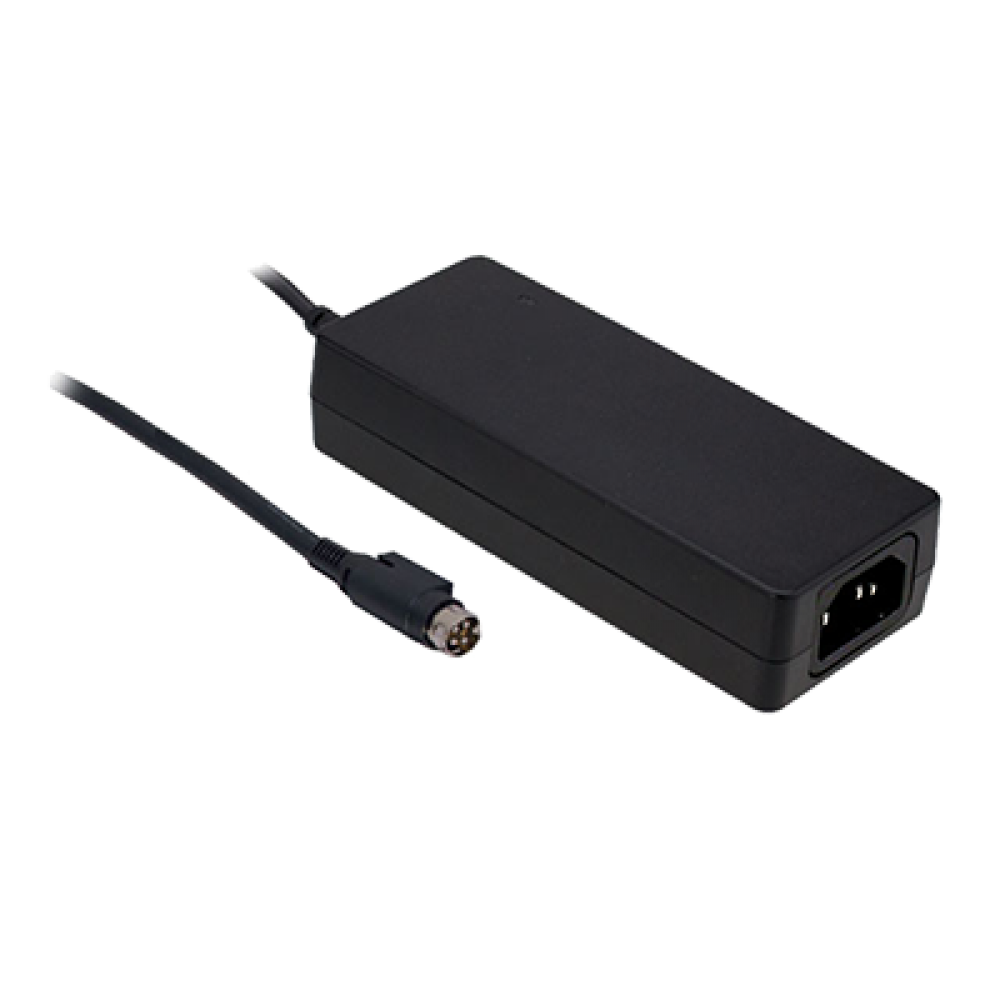

120W 24VDC Output Industrial C14 Desktop Adapter Please ring us to discuss a great price for this product.Product Features
- Extremely low leakage current
- 30°C ~ +70°C wide range working temperature
- Energy efficiency level VI and meets CoC Version 5
- 3 pole AC inlet IEC320-C14, Class I power unit
- 3 years warranty
- Lifetime > 95K hours
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- No load power consumption < 0.15W
- LED indicator for power on
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
GSM120A is a highly reliable, 120W desktop style single-output green medical adaptor series. This product is equipped with a 3-pin (with FG) standard IEC320-C14 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy the demands for various kinds of medical electrical devices.The circuitry design meets the international medical standards (2×MOPP), having an ultra low leakage current (
