GSM120B48-R7B

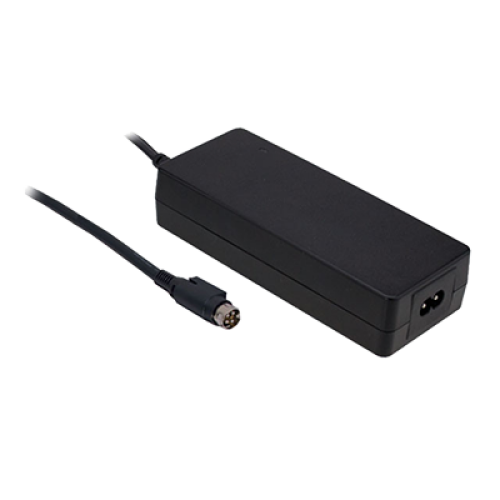

120W 48VDC 2.5A Green Medical C8 Desktop Adapter Please ring us to discuss a great price for this product.Product Features
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Extremely low leakage current
- No load power consumption < 0.15W
- Energy efficiency level VI and meets CoC Version 5
- LED indicator for power on
- 3 years warranty
- 30°C ~ +70°C wide range working temperature
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-11
- 2 pole AC inlet IEC320-C8, Class II power unit
Description
GSM120B is a highly reliable, 120W desktop style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy the demands for various kinds of medical electrical devices.The circuitry design meets the international medical standards (2×MOPP), having an ultra low leakage current (
