OWA-120U-48
120W 48VDC 2.5A US Moistureproof Adapter Please ring us to discuss a great price for this product.Product Features
- No load power consumption <0.15W
- UL LISTED, suitable for dry and damp locations
- 5 years warranty
- Comply with EISA 2007/DoE, NRCan
- High efficiency up to 90.5%
- Universal AC input / Full range
- Built-in active PFC function
- Energy efficiency Level Ⅵ
- Fully isolated plastic case
- Class Ⅱ power unit, no FG
- Fanless design, cooling by free air convection
Description

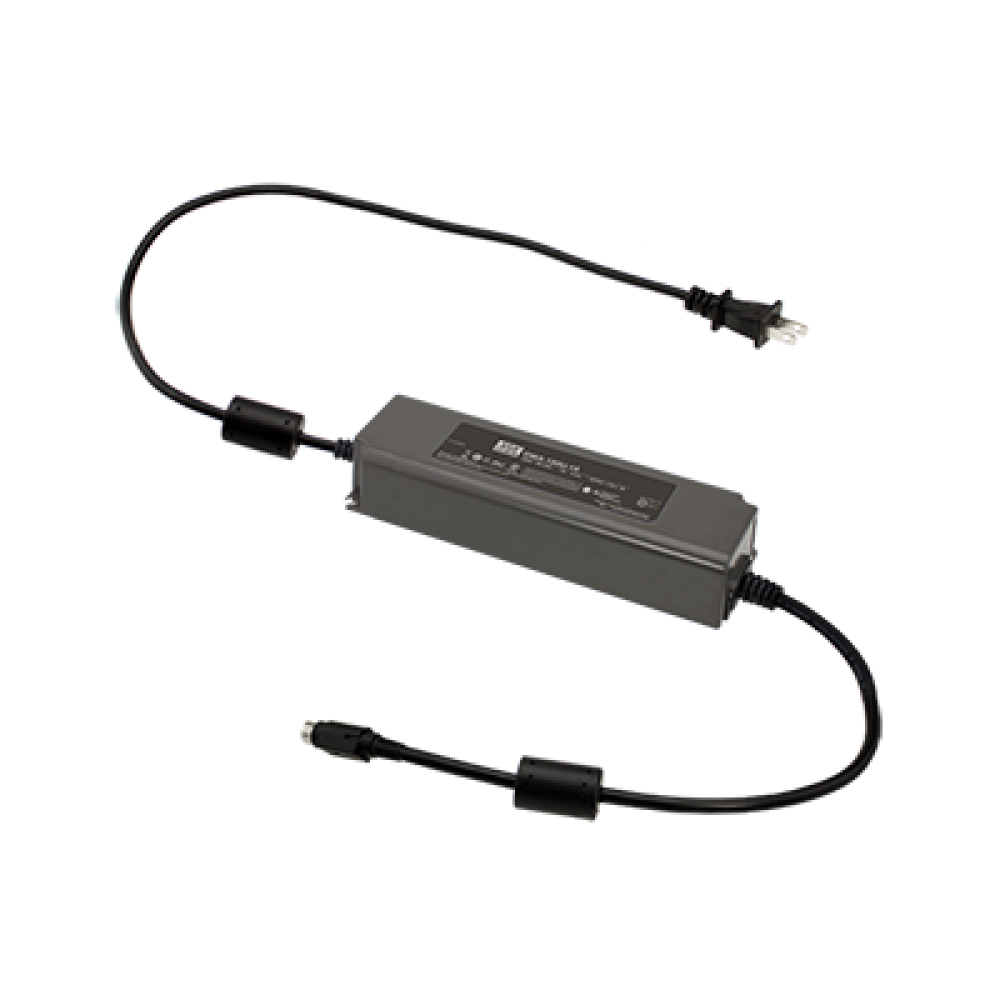

OWA-120U is a 120W single-output external LED power supply series. Pairing the North American type of AC plug and the prevailing DC connectors, OWA-120U, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts. The entire series is certified with the “UL LISTED” for dry and damp locations.As a class Ⅱ (no FG) design, the enclosure of OWA-120U is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation. With the working efficiency up to 90.5%, OWA-120U is cooled by free air convection; the working temperature ranges from -40℃ to +70℃.
