NGE12I05-P1J
12W 5VDC 2.4A Interchangeable Base Plug Top Adapter Please ring us to discuss a great price for this product.Product Features
- Class II power (no earth pin)
- Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
- Protections: Short circuit / Overload / Over voltage
- Pass LPS
- 3 years warranty
- Energy efficiency Level VI
- 30°C to +70°C wide range working temperature
- Extremely low leakage current <100uA
- No load power consumption < 0.075W
- 80~264Vac Universal AC input
- Ultra slim (28mm)
Description

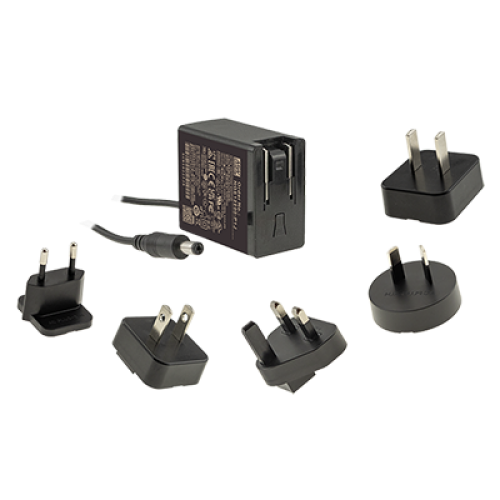

NGE12 is a highly reliable, 12W wall-mounted style single-output green adaptor series, which is compact and convenient for carrying. This product is equipped with 7 types of interchangeable AC plugs (European, USA, U.K., Australian, Chinese, Korean and Indian types) that make it very suitable for travel use. NGE12 is a Class II power unit (no FG), accepting the input range from 80VAC to 264VAC that which can satisfy the demands for various types of electrical devices.With the working efficiency up to 88.5% and the extremely low no-load power consumption below 0.075W, NGE12 is compliant with the latest USA energy regulation EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea KMEPS, EU ErP and CoC version 5. The supreme feature allows the adaptor to save energy when it is in either the operating mode or the standby mode. The entire series is approved for ITE, medical, household and industrial appliance safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that can effectively prevent users from electric shock.
