NGE18U15-P1J
18W 15VDC 1.2A US Plug Top Adapter Please ring us to discuss a great price for this product.Product Features
- 30℃ ~ +70℃ wide range working temperature
- Class II power (no earth pin)
- 80~264Vac Universal AC input
- Energy efficiency Level Ⅵ

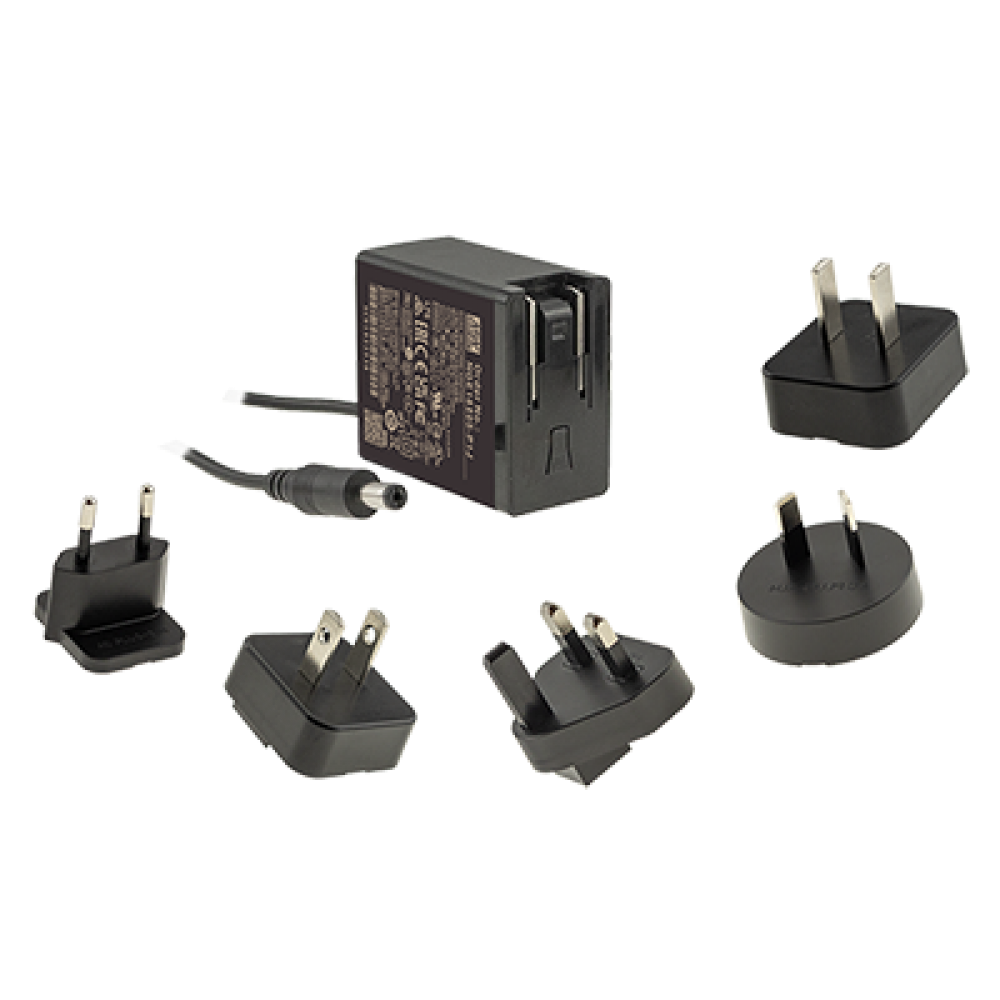

- Interchangeable AC plugs (I-Type)
- Extremely low leakage current <100uA
- No load power consumption <0.075W
- Ultra slim (28mm)
- 3 years warranty
- Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
- Protections: Short circuit / Overload / Over voltage
Description
NGE18 US is a compact 18W wall-mounted single-output power adapter tailored for North American applications. This Class II (no FG) adapter supports a universal input of 80VAC to 264VAC and delivers reliable power for LED lighting, consumer electronics, and household devices. Offering up to 88% efficiency and no-load power consumption under 0.075W, it complies with EISA 2007/DoE, NRCan, and UL safety standards for dry and damp locations. The 94V-0 flame-retardant case with low leakage current ensures safe operation in both residential and light industrial environments.
