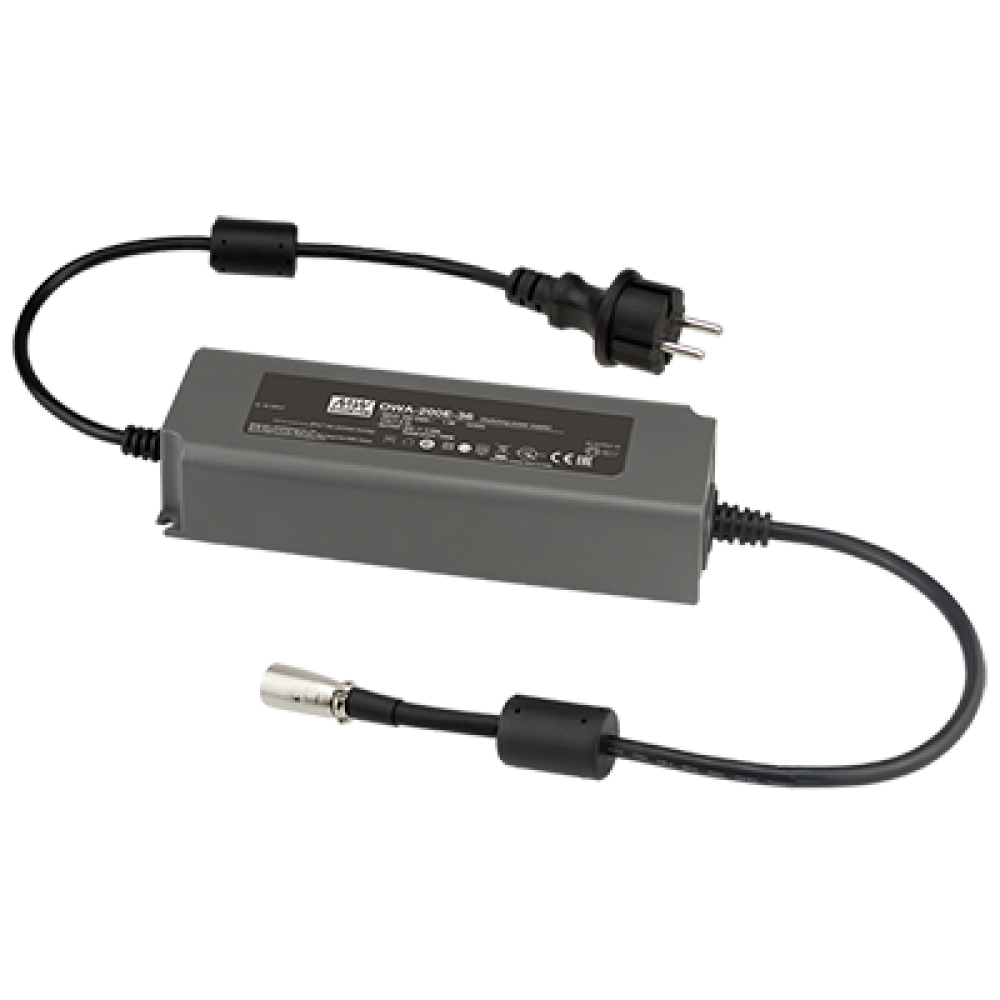

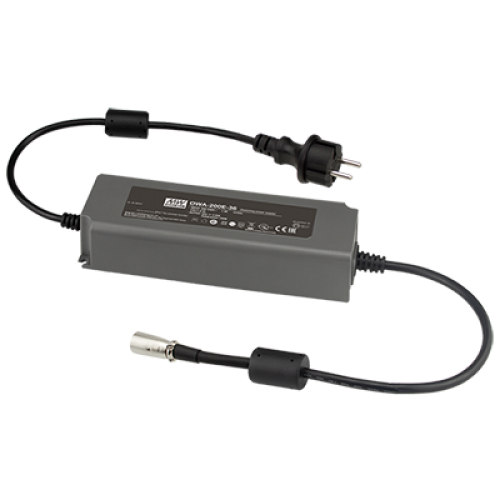

OWA-200E-54
200W 54VDC 3.71A EURO Moistureproof Adapter Please ring us to discuss a great price for this product.Product Features
- 5 years warranty
- No load power consumption <0.15W
- Class Ⅱ power unit, no FG
- Compliance to IEC/EN 61558-1, -2-16 and IEC/EN 60335-1 (except for OWA-200E-48,54) for household appliance
- Energy efficiency Level Ⅵ
- Fanless design, cooling by free air convection
- High efficiency up to 94%
- Built-in active PFC function
- Comply with EU ErP and CoC Version 5
- Input range 180~264VAC
Description
OWA-200E is a 200W AC/DC, class Ⅱ (no FG) external power supply series pinpointing the moistureproof feature. The fully-potted silicone inside the plastic enclosure enhances the heat dissipation; it also benefits that the power body of OWA-200E achieves IP67 level, so that this series specialises the application in which the damp, humidity or dust resistance is needed for the external power supply. OWA-200E follows the latest energy efficiency demand and the no load power consumption of less than 0.15W. It is certified with EN61558-2-16; moreover, the compliance to EN60335-1 for selected models can greatly simplify the system design, such as household or charging applications.OWA-200E adopts the input range from 180VAC to 264VAC and incorporates a built-in PFC function. With the working efficiency up to 94%, OWA-200E is cooled by free air convection; the working temperature ranges from -40℃ to +70℃.
